Mobile Crane - all terrain type

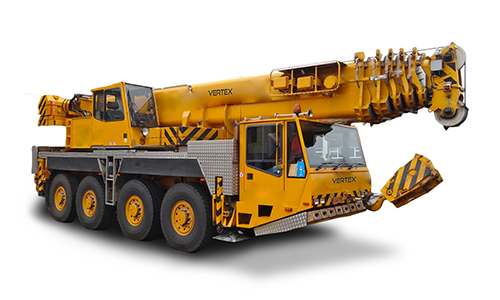

Vertex Mobile Crane with the necessary equipment to travel at speed on public roads, and on rough terrain at the job site using all-wheel and crab steering. This crane is mounted on an undercarriage with four rubber tires that is designed for pick- and-carry operations and for off-road and "rough terrain" applications. Outriggers are used to level and stabilize the crane for hoisting. In a rough terrain crane, the engine is usually mounted in the undercarriage rather than in the upper, as with crawler crane. Most models have 4-wheel drive and 4 wheel steering which allows them to traverse tighter and slicker terrain than a standard truck crane with less site prep.

  • Physical model includes the simulation of
  • Equipment
  • Special conditions

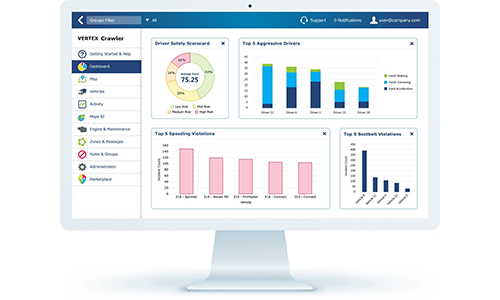

  • Reports at the instructor's console
  • Visualization system

  • The multiple parts-of-line and joints of the machine.
  • The fluctuations that occur on the crane’s boom due to action of the forces in operation.
  • The cable behaviour, based on pulleys. Collision and contact between the hook and cables.
  • The Hoisting system, brakes and limit switches slowdowns are fully simulated.
  • The structural vibration and deformation
  • The main accelerations and movements that are perceived in the cab.
  • Realistic force feedback from the cargo hook.
  • Load Moment Indicator and Safe Load Indicator simulation.

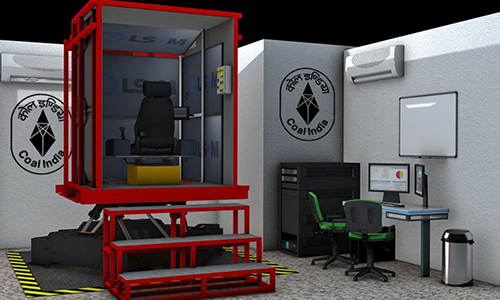

  • Cabin atop a 3 to 6DOF platform.
  • Real operation console.

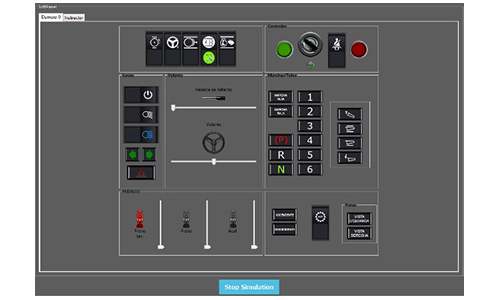

  • Instructor's console with full control over the simulation.
  • Digital sound effects from the real environment.
  • Projection system with three high resolution screens.

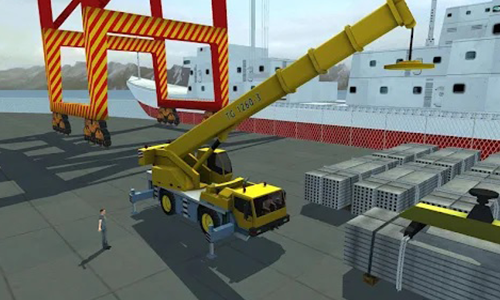

  • Simulation of bridge crashes with objects in the terminal
  • Weather conditions: rain, wind, fog...
  • Realistic response to collisions.
  • Machinery malfunctions, also injected by the instructor at run-time.

  • Date
  • Starting and ending time
  • Time length.
  • Finished exercises.
  • Velocity log.
  • Collision log.
  • Dangerous manoeuvres log

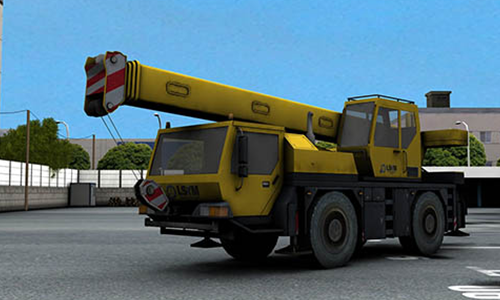

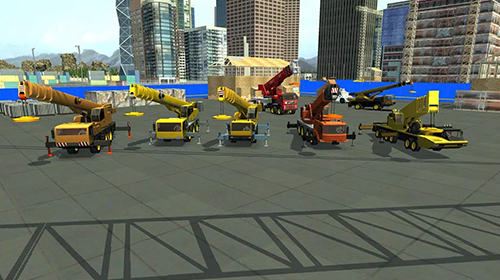

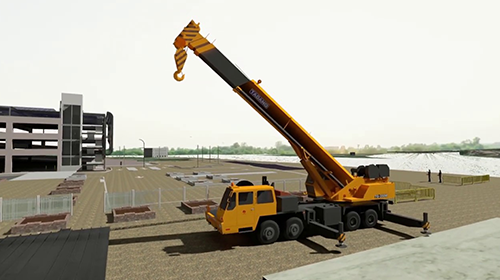

  • High quality images, generated in real time.
  • 3D graphics.
  • Picture textures from a real environment.
  • LMI/SLI functional indicator..
  • Heads-Up Display showing information about positions and crane parameters.

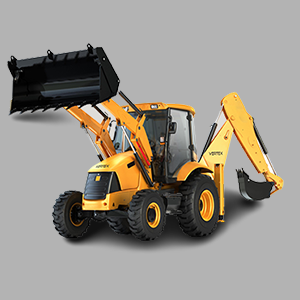

Back Hoe Demo
