Introduction

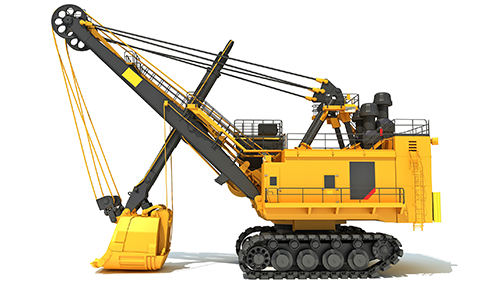

Vertex Electric Shovel Simulator is used mainly for training the Electric Shovel Drivers in Mining sites virtually with cost effective and without vehicle. Our Simulator are used with the original Replica of the Real Electric Shovel in Control Systems as well as engine and vehicle Dynamics. We train the new operators to get fermionized with operating the vehicle controls and handling the emergency situation. We also evaluate the existing drivers periodically and ensure the fitness of them to continue their work in mining sites obeying the mining site regulation for safer Drive. Vertex simulator provide our customers to have the accident-free zone in sites.

  • Equipment
  • Special conditions
  • Principal functions
  • Reports at the instructor's console
  • Visualization system

    Cabin 2 to 6 DOF platform
    Real operation console
    Real steering wheel
    Driving pedals
    Instructor's console with full control over the simulation
    Digital sound effects from real environment
    Projection system with 2 to 5 high resolution screens

    Weather conditions: wind, rain, fog...
    Work with artificial light
    Realistic response to collisions
    Work with unbalanced loads
    Realistic soil and terrain dynamics: mass, inertial properties and collisions affect machine behaviour.
    Machinery malfunction, also injected by the instructor at run-time

    Theory module
    Real start-up and stop procedure
    The driving and operation of the machine is done in a quarry carefully designed to perform all the necessary exercises
    Precise simulation of machine transmission
    Response of the machine dependent on the load
    Dynamic avatars
    Information on screen for both the user and the instructor
    Information window with the status and position of the machinery and operation commands
    Soft panel design and implementation that allows full control of the machine using the PC mouse

    Date
    Starting and ending time
    Time length
    Finished exercises
    Control handling log
    Velocity log
    Collision log
    Dangerous manoeuvres log
    Mistakes during exercise
    Trip count

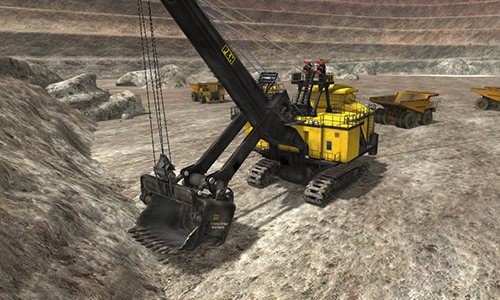

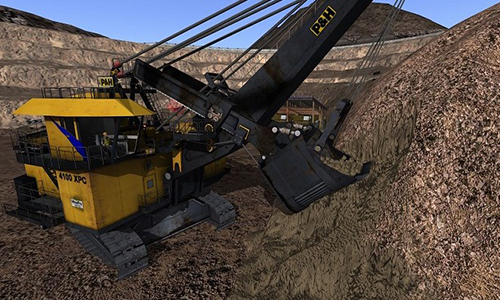

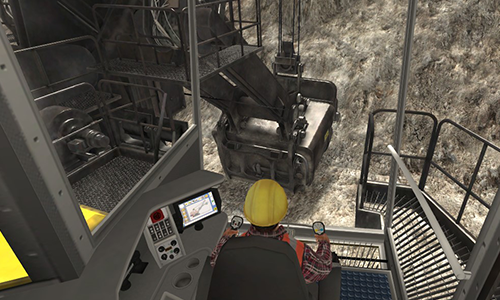

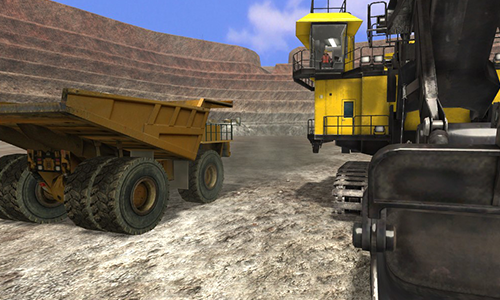

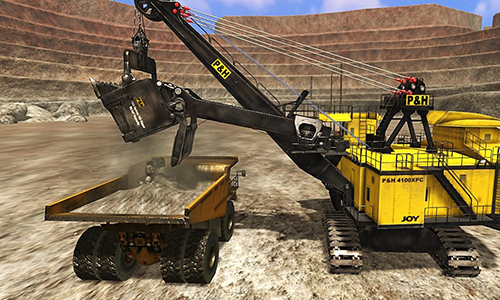

    4k quality Rendering, generated in real time
    Realistic environment
    Picture textures from a real facility.
    External views displaying machine parameters
    Heads-Up Display showing information about positions and machine parameters

Rope Shovel Demo
